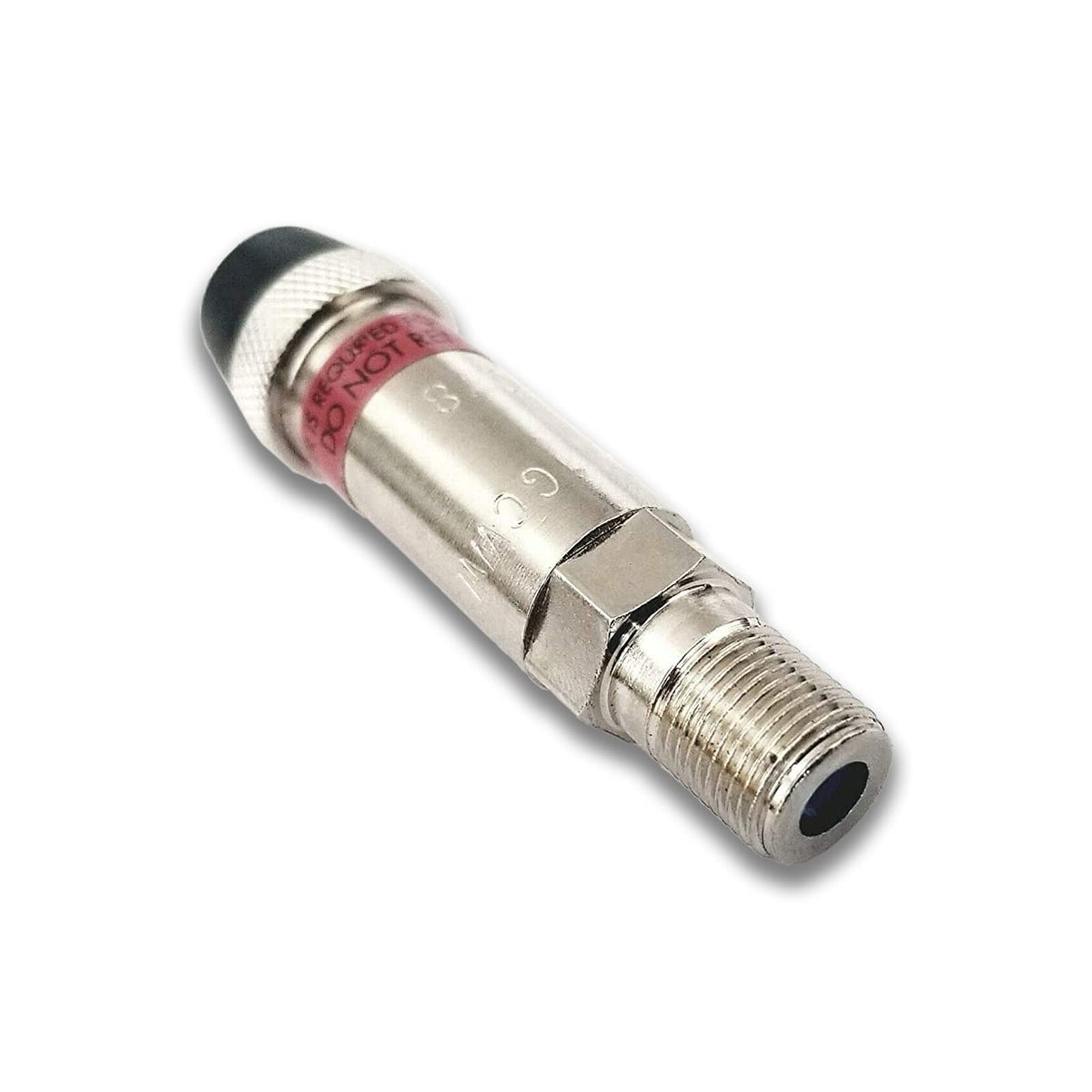

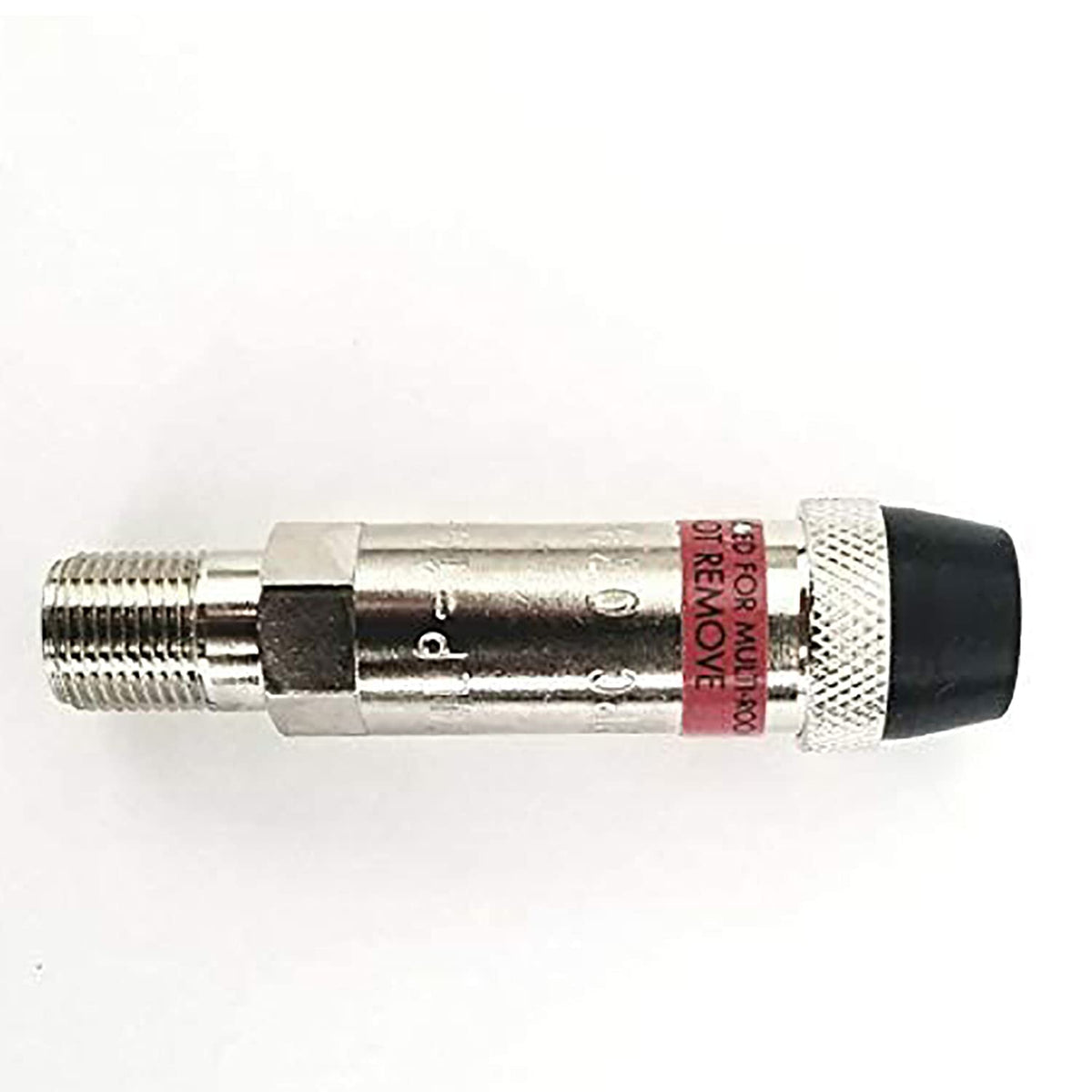

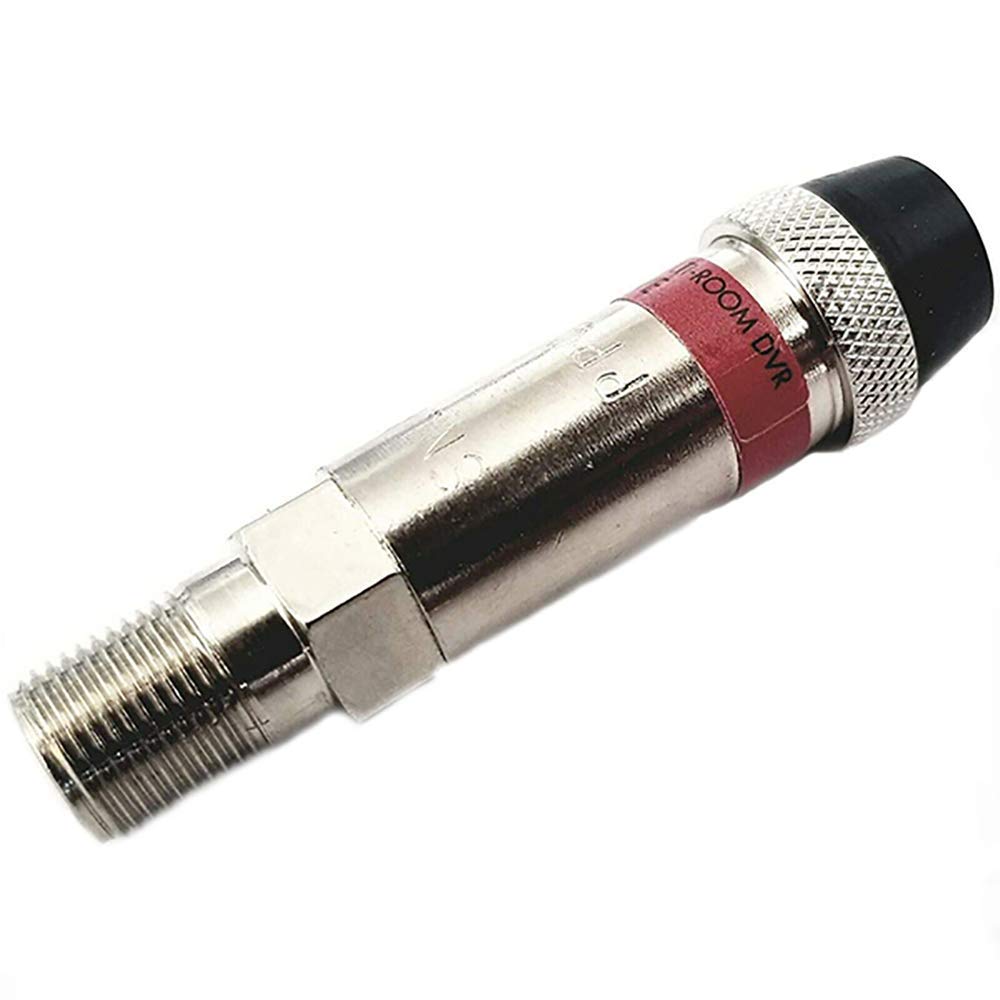

Filter, MoCA POE for Cable TV & OTA coaxial Networks ONLY

Brand: PPC a BELDON Brand

Color: Gold

Features:

• Approved for use in most cable systems & other providers including TiVO utilizing MoCA for whole house DVR apps.
• Device's technology is recommend for DVR Whole House DVR applications.
• IEEE 6KV B3 surge survivability is provide for additional network protection.
• Bandstop provides a typical 35-45dB of rejection in the MoCA 1125-1525Mhz band.
• Designed for use within the users premise, NOT INTENDED FOR OUTSIDE INSTALLATION

Binding: Electronics

model number: SNLP-1GCW

Part Number: SNLP-1GCW

Details: The BELDEN PPC MoCA "Point of Entry" filter Model SNLP-1GCW serves as an in-home networking services pass-through for the 5-1002MHz band while providing an excellent termination for the MoCA band from 860Mhz to 1525MHZ. The device physically isolates the subscriber premise by providing a band stop at the networks Point of entry "POE". This avoids interference from other MoCA users. The device provides a perfect termination for the MoCA band and reduces micro reflections that would typically reduce the data throughput.

EAN: 7038556962506

Package Dimensions: 2.0 x 0.6 x 0.6 inches
