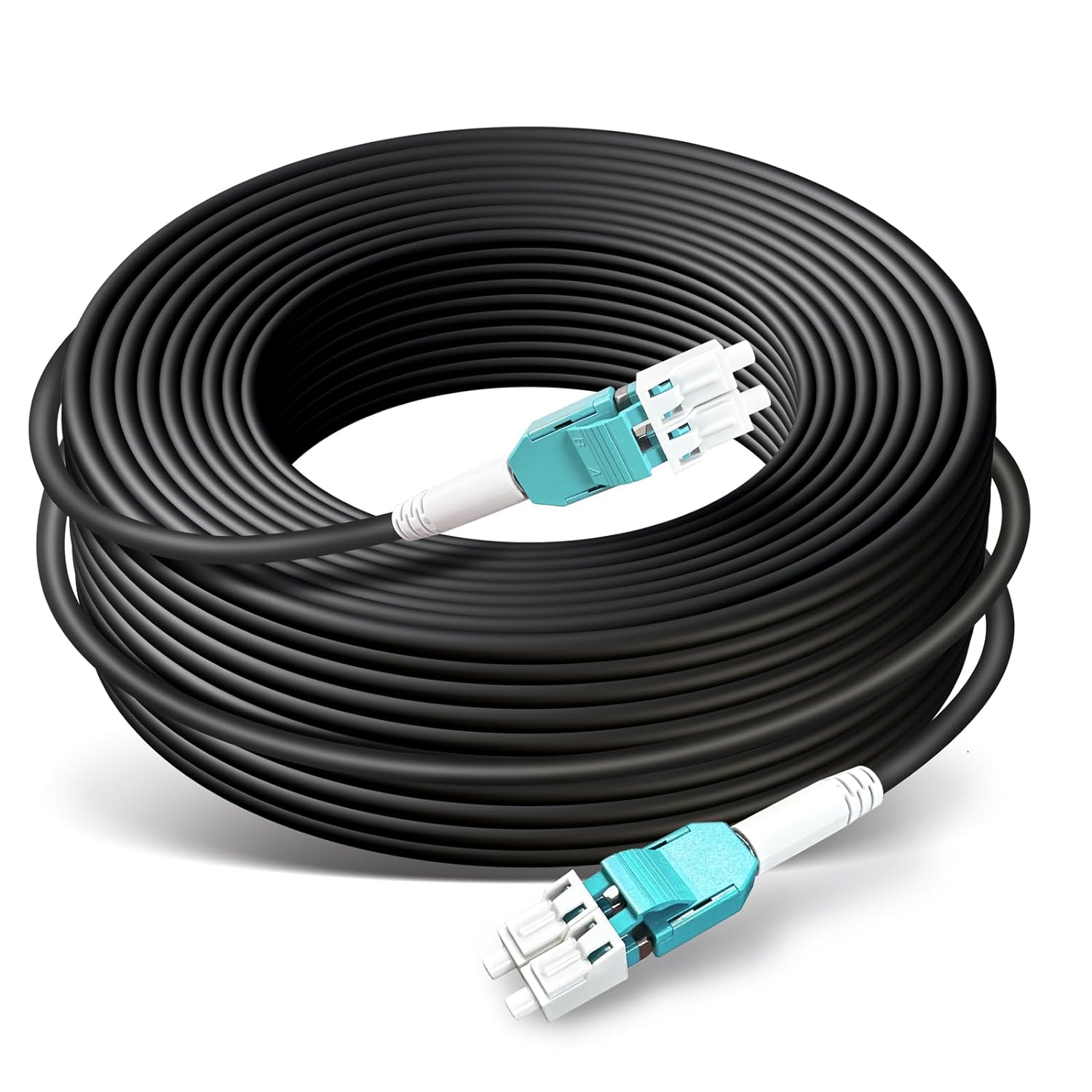

330ft/100m OD-5mm Industrial TPU OM3 Fiber LC to LC Outdoor Armored Fiber Patch Cable, Duplex Multimode Fiber Optic Cable, 40Gb 10Gb, 50/125, Uniboot LC-LC with Pulling Eye Kit Installed on one end
330ft/100m OD-5mm Industrial TPU OM3 Fiber LC to LC Outdoor Armored Fiber Patch Cable, Duplex Multimode Fiber Optic Cable, 40Gb 10Gb, 50/125, Uniboot LC-LC with Pulling Eye Kit Installed on one end
Regular price
$207.98 USD
Regular price
Sale price
$207.98 USD
Unit price
per
Couldn't load pickup availability
YUTIANHOME FIBER, a trusted and leading provider of comprehensive communication and high-speed network system solutions for customers in the networking, data center, and telecom industries.
For Business customers, our factory also accept custom orders and can manufacture products according to your specifications
 |
 |
 |
 |
|
|---|---|---|---|---|
| Industrial OM3 Cables | (Separate ends) Armored OM3 Cables | Standard Armored OM3 Cables | Uniboot Armored OM3 Cables | |
| Cable Diameter | 5.0mm | 3.0mm | 3.0mm | 3.0mm |
| Fiber Count | 2 Fibers | 2 Fibers | 2 Fibers | 2 Fibers |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive |
| Jacket | 5.0mm | 3.0mm | 3.0mm | 3.0mm |
| Armored | ✓ | ✓ | ✓ | ✓ |
| Available Length | 5-300m | 1-300m | 1-300m | 1-300m |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Indoor or underground with conduit | Indoor or underground with conduit |
 |
 |
 |
|
|---|---|---|---|
| Industrial OS2 Cables | 3.0mm Armored OS2 Cables | 4 Fibers Industrial OS2 Cables | |
| Cable Diameter | 5.0mm | 3.0mm | 5.0mm |
| Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers |
| Fiber Grade | G.657.A2 | G.657.A2 | G.657.A2 |
| Jacket | TPU | LSZH | TPU |
| Armored | ✓ | ✓ | ✓ |
| Available Length | 5m-10kilometer | 1m-10kilometer | 50-150m |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -40 to 80°C (-40 to 176℉) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment |

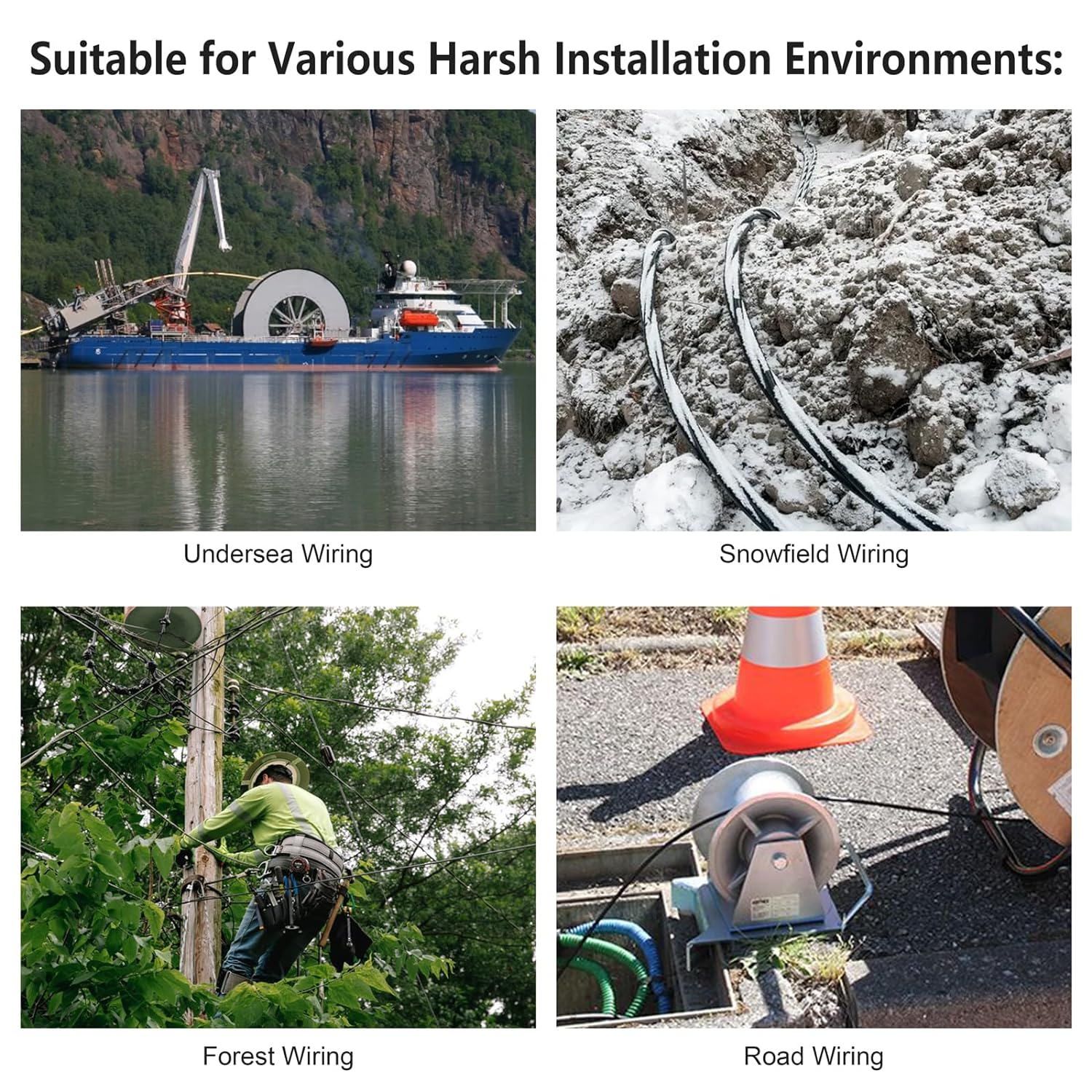

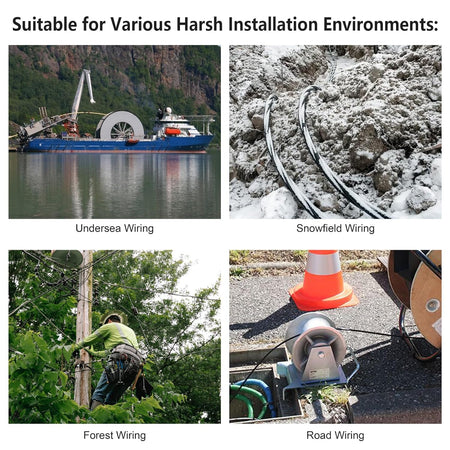

- Industrial TPU Jacket features strong tensile strength, high abrasion resistance, water proof, high and low-temperature resistance, uv-resistant, bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.

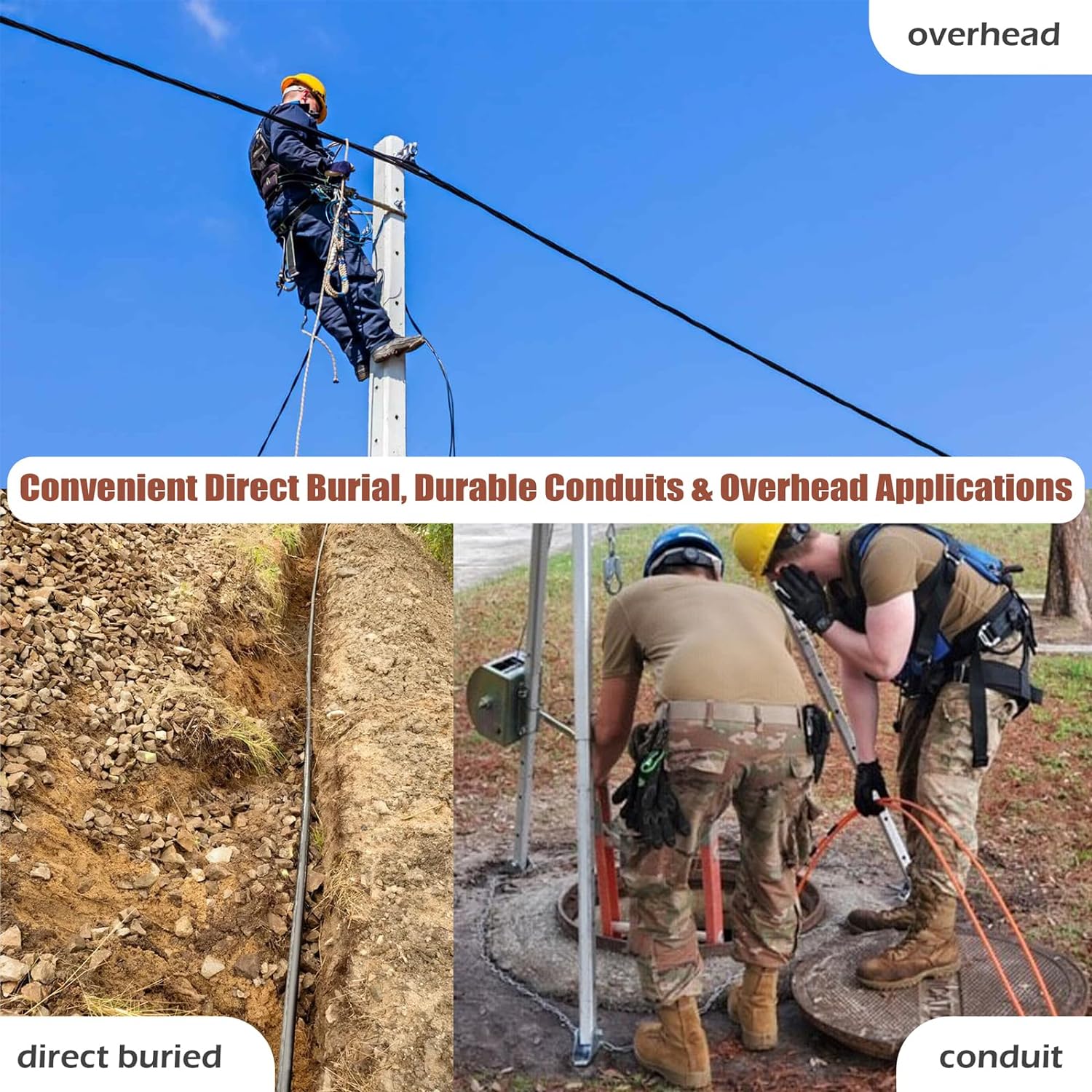

- Can be installed overhead, buried directly in the ground, or routed through conduits.

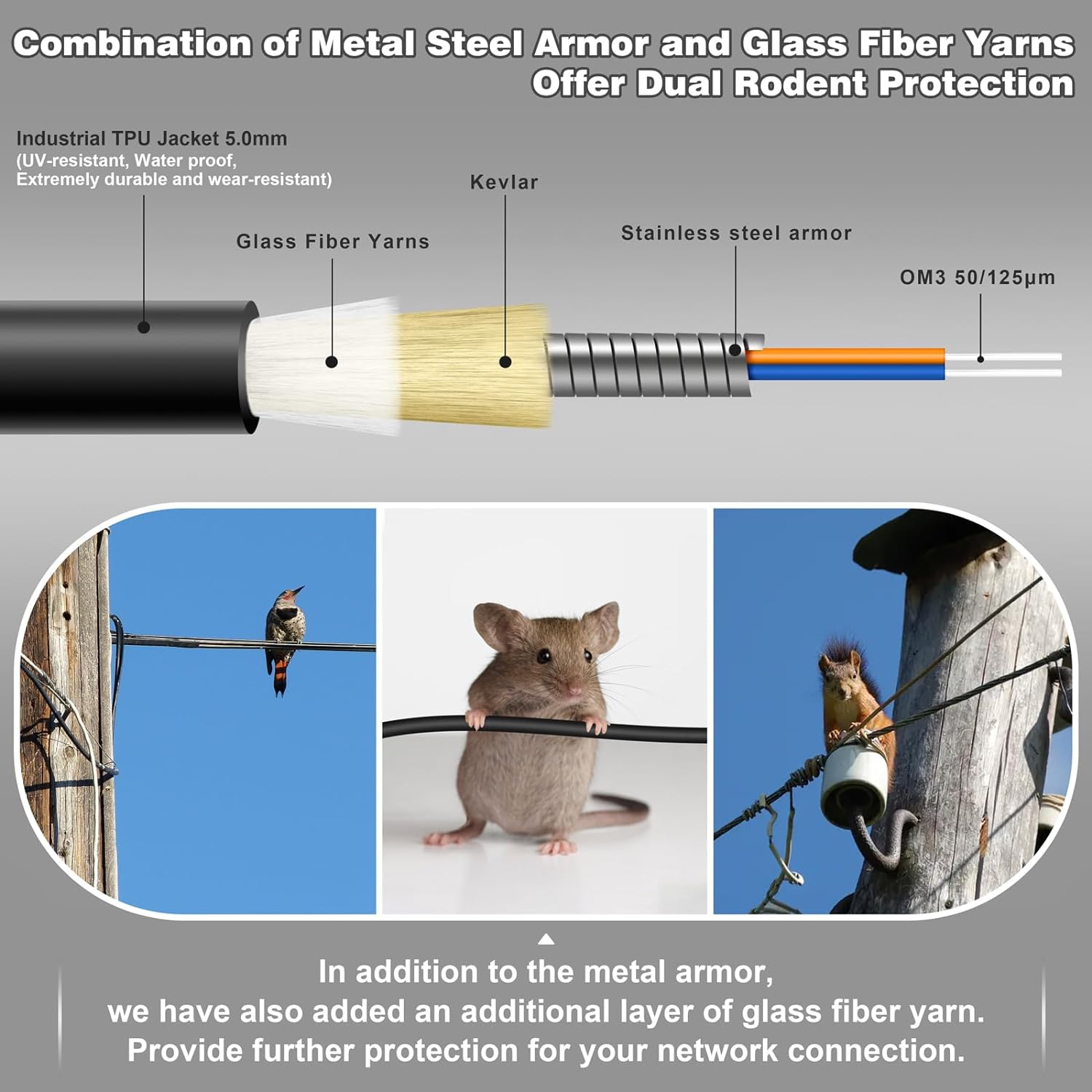

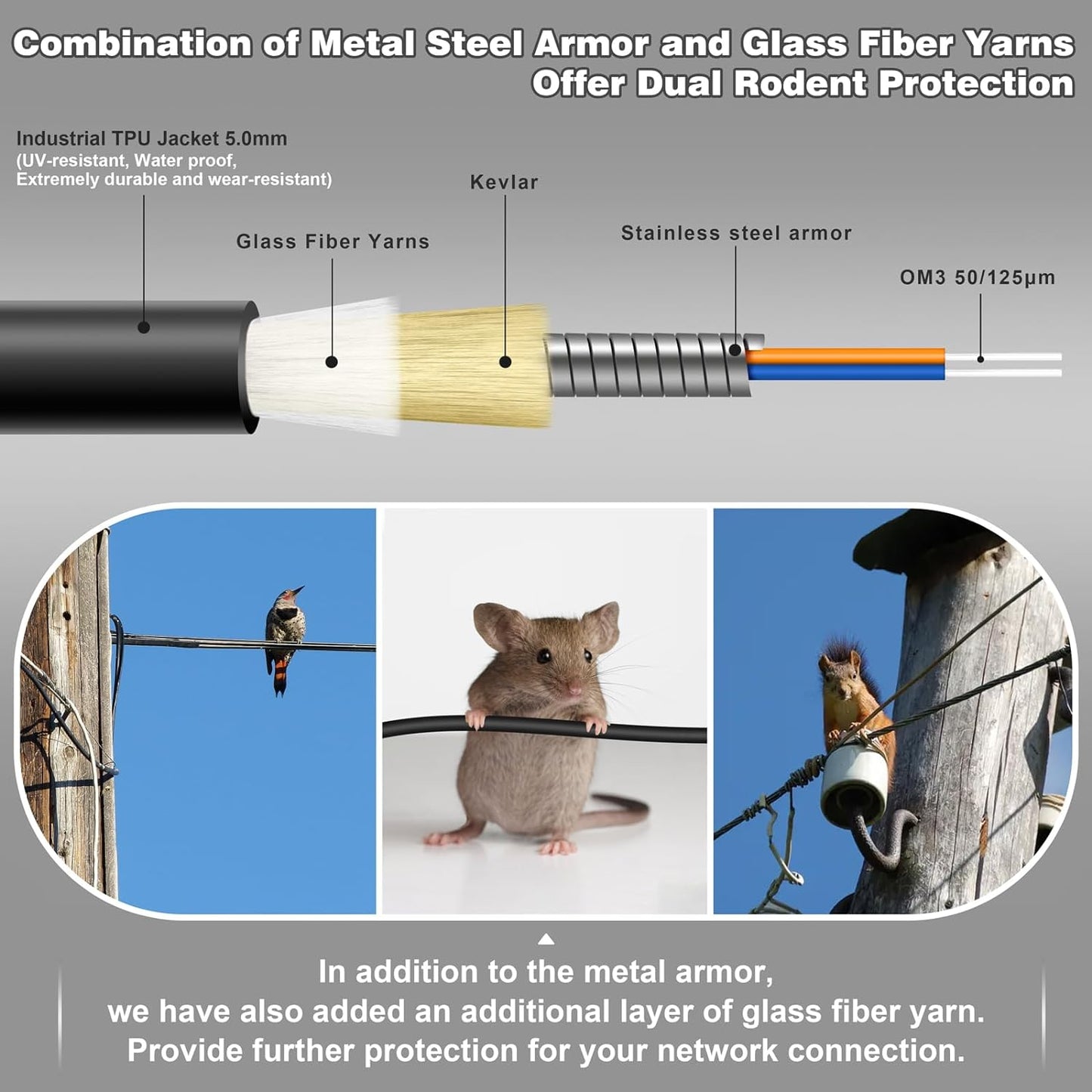

- Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents

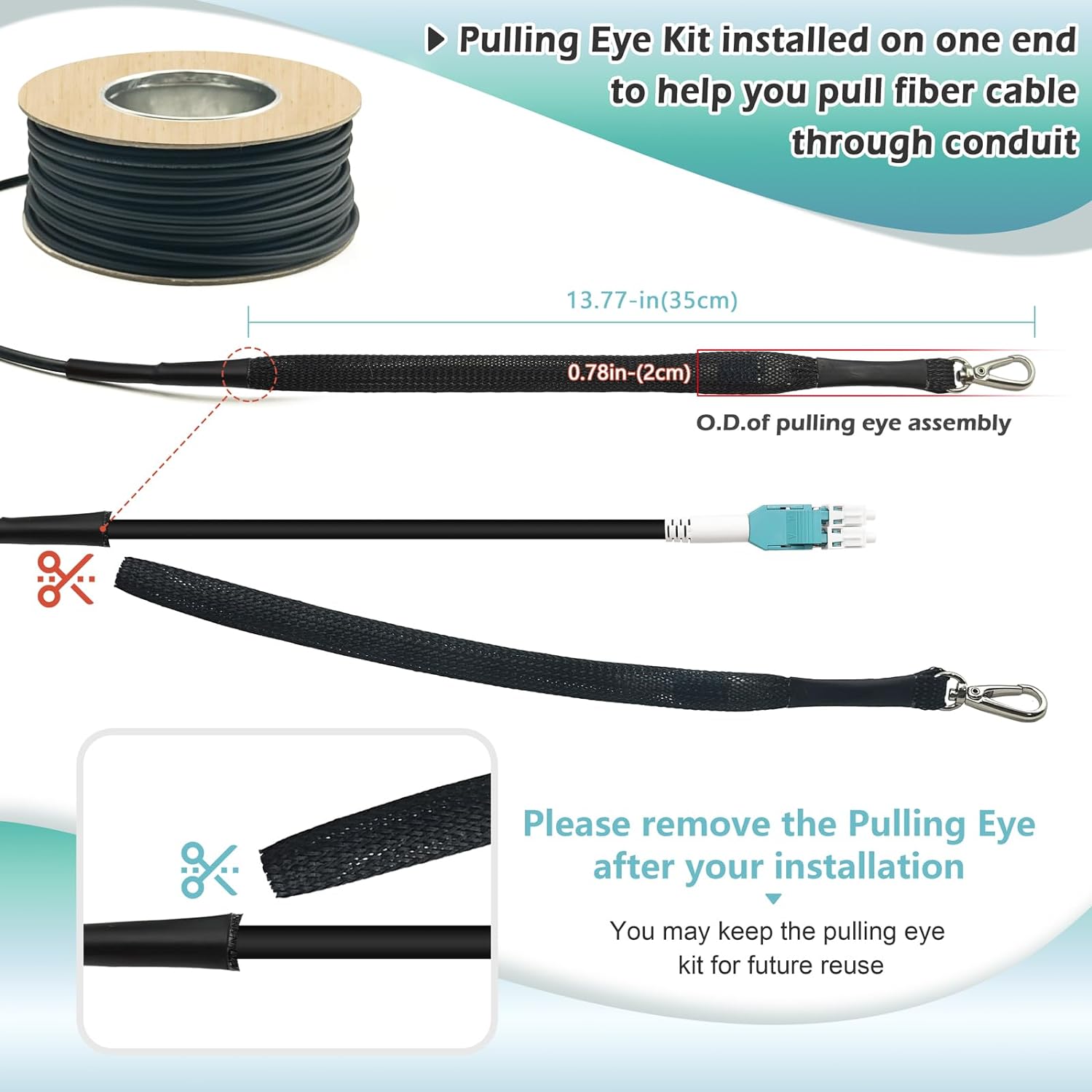

- Pulling eye Pre-Terminated OM3 Fiber cables: with swivel pulling eye kit installed on one end to eliminate cable damage during installation. You can remove the pulling eye kit after installation and keep it for reuse. The pulling eye kit is a must for any riser or plenum fiber installation
- 5.0mm Outer Diameter Outdoor Fiber Optic Cable, a larger diameter compared to 3.0mm cables: Thicker 5.0mm cables suitable for environments where the cable might be subjected to more wear and tear, such as outdoor installations, industrial settings, or areas with a higher risk of physical damage.

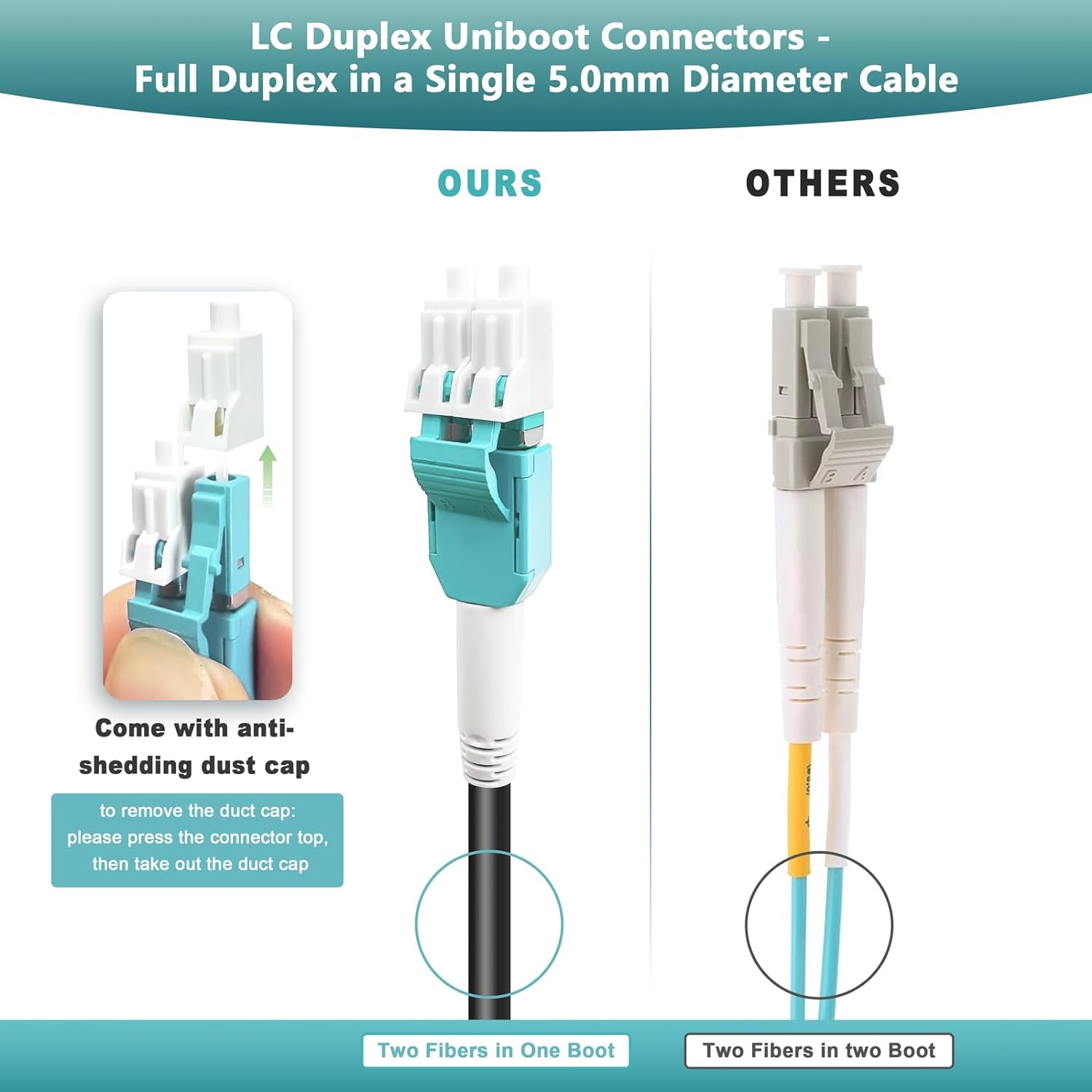

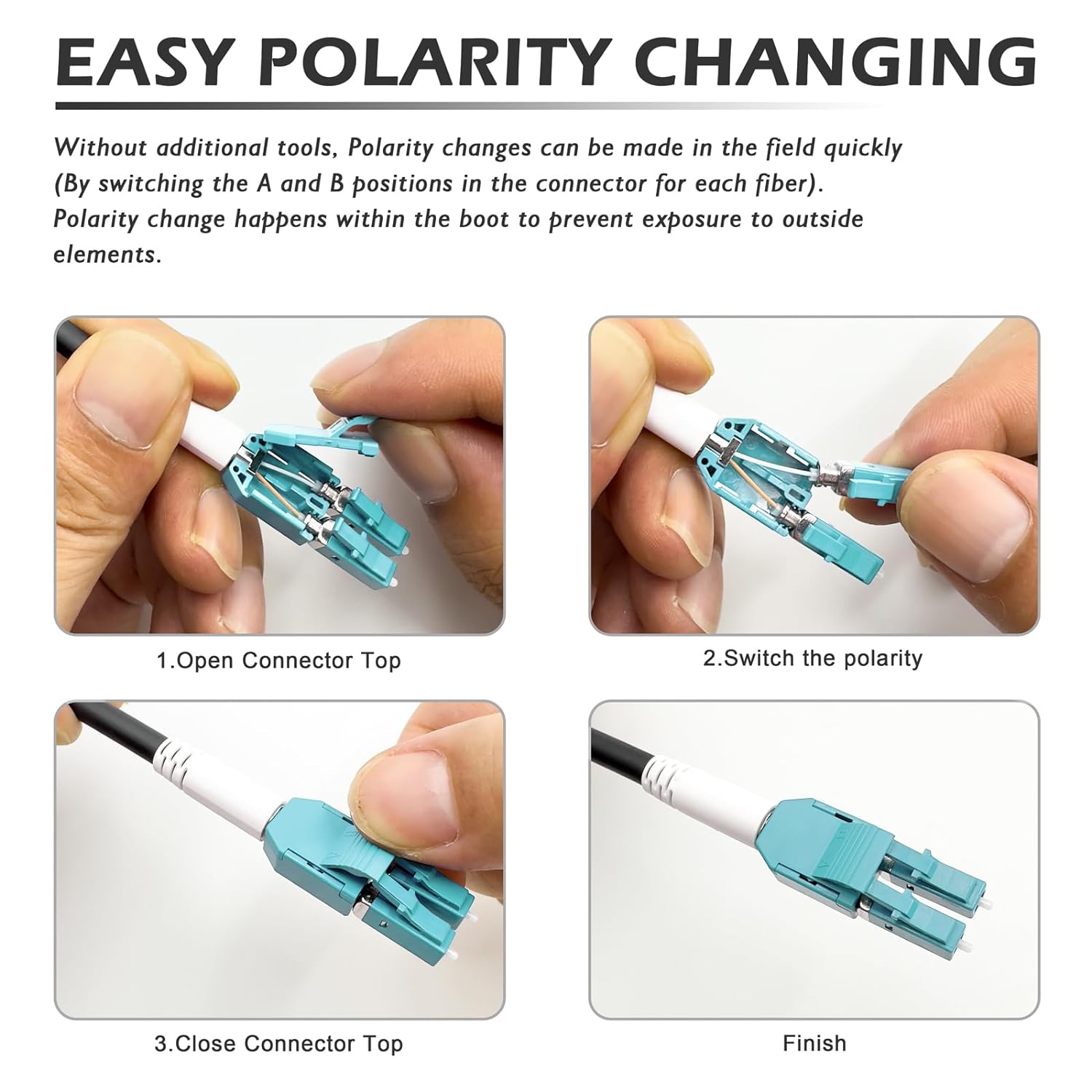

- Multimode OM3 Duplex LC Uniboot connector: The uniboot design allows one cable to carry two fibers to reduce the cable bulk when routing. LC Uniboot Connectors also enable simplified polarity correction in the field. No tool required
| Brand | YUTIANHOME |
| Connector Type | Lc Uniboot Connectors |
| Compatible Devices | ethernet, Server, TV camera |
| Recommended Uses For Product | Ideal for harsh situations such as roads & snowfields & industrial fields & construction sites. See more |
| Color | Black |
