AFL Fast LC Connector, 50/125um OM3 10G Multimode, come with 900um boot

Brand: AFL (Fujikura)

Color: Blue

Details: AFL FAST LC Connector, 50/125um OM3 10G Multimode, Fit 250um Bare Fiber, 900um Buffered Fiber, 2.0mm and 3.0mm Jacket. Housing Color: Aqua.
The biggest advantage: No special assembly tools required!
AFL FAST Connectors are factory pre-polished, field installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
FAST Connectors are compatible with 250um and 900um optical fibers, as well as 900um, 2mm, and 3mm cordage. All primary fiber types are supported, and each connector is color coded per industry standard requirements to aide in identification during and after installation.

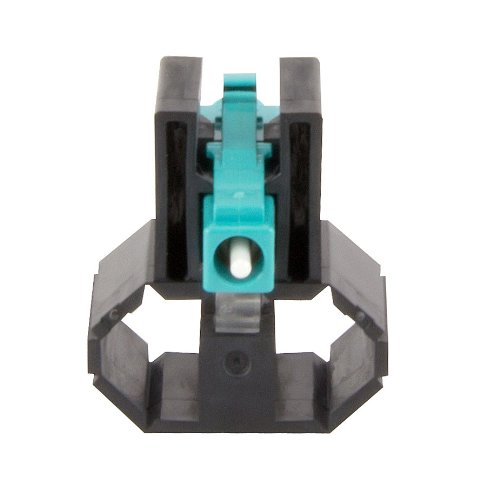

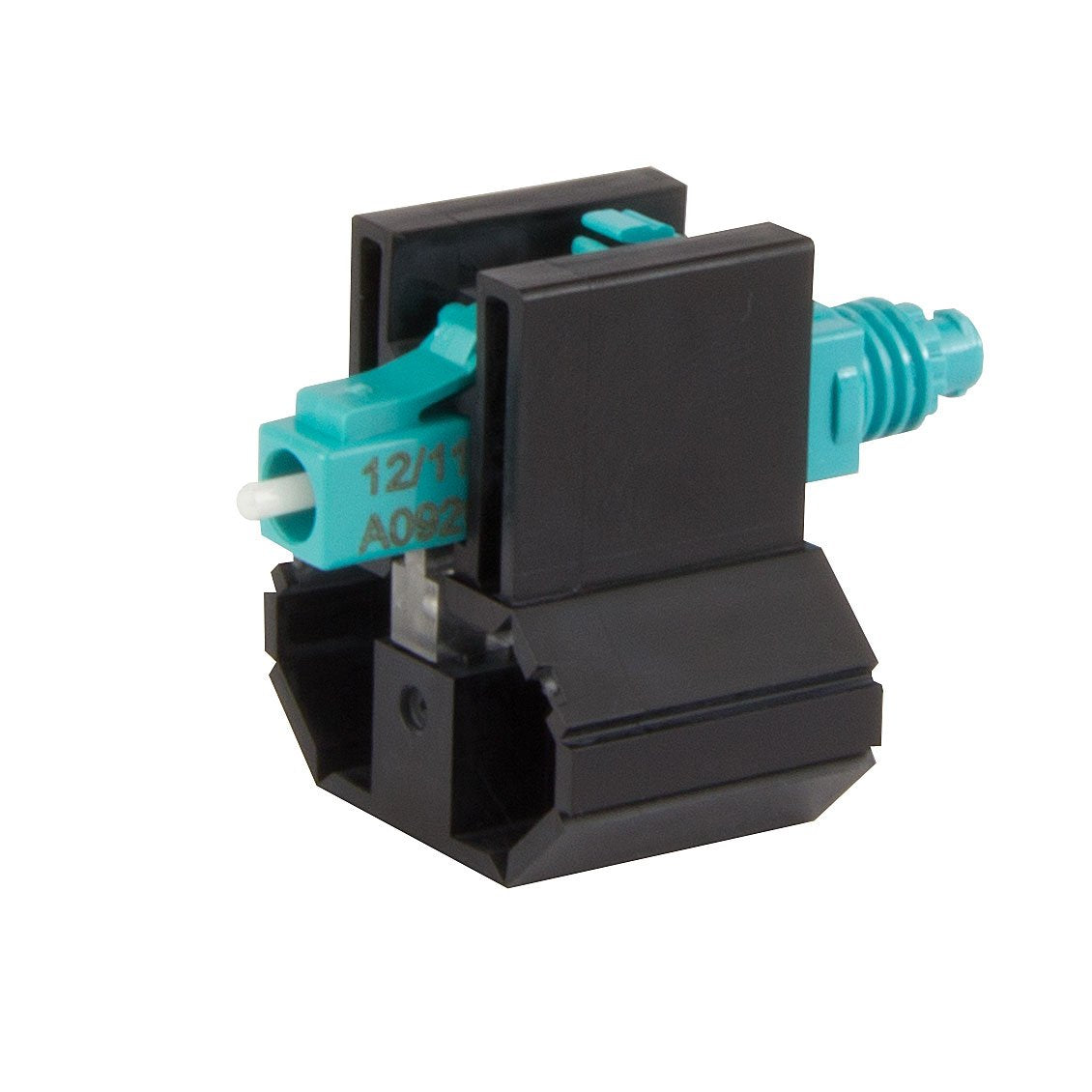

A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Product Features:
Pre-stubbed, factory-polished ferrule
No epoxy required
Precision mechanical alignment insures low loss
Fiber can be re-seated
900um boot provide with each connector
VFL can be used to confirm fiber is installed properly
Meets TIA/EIA 568A performance requirements
Meets TIA/EIA 604 (FOCIS) connector interface requirement
Applications:
Premise environments
Connections at the desk for LAN environments
Fiber optic patch panels
Direct equipment termination
Fiber to teh Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads

EAN: 0840371102046

Package Dimensions: 4.9 x 2.5 x 0.6 inches
