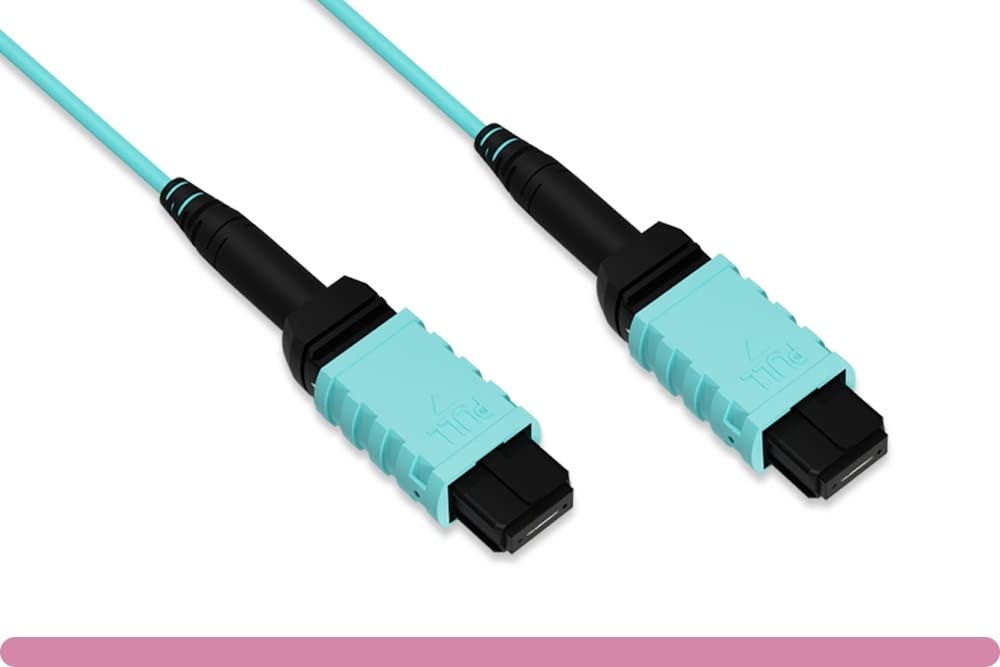

RiteAV - MPO Female to MPO Female OM4 Multi-Mode 12 Strand Fiber Optic Trunk Cable (Type B) 10 Gb/s, 40 Gb/s, and 100 Gb/s (3 Meter (10 Feet))

Brand: RiteAV

Features:

• Fiber Connector A: MPO Female Low-Loss
• Fiber Connector B: MPO Female Low-Loss
• OM4, Multimode, 50 / 125 , 12 Strand Fiber , UPC Polish
• OFNR (Riser)

Part Number: MPOF-MPOF-B

Details: Description

MPO OM4 MULTI-MODE 12 FIBERS FEMALE TO FEMALE TRUNK CABLE TYPE B OM4 MPO F/UPC to MPO F/UPC 12 Fibers patch fiber trunk cable is a great cost-effective connection solution for high-density networking in places like telecom and data center. The MPO trunk cable serves as the multi-fiber push-on connection solution to connect fiber transceivers, optical fiber adapter panels, and MPO cassettes. OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable. With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm. Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters. OFNR (Riser) rated fiber cable is ideal for use in the riser space of commercial/residential buildings. Compatible with SFP+, QSFP, and QSFP+ transceivers for 10G/40G/100G network Connection type B (Reversed), key up to key up. Use LED and VCSEL laser light sources. Corning glass 50μm core and 125μm cladding. 100% Tested with report included in each cable package. Dust protective cap included UL listed
