Shireen DC-1020 - Outdoor Gel Filled, Direct Burial, Double jacketed Cat5e

Brand: Shireen

Features:

• Outdoor UV rated with Double jacket
• Gel filled for direct burial or all weather installations
• 24AWG center conductor for optimum performance

Binding: Electronics

Part Number: DC-1020

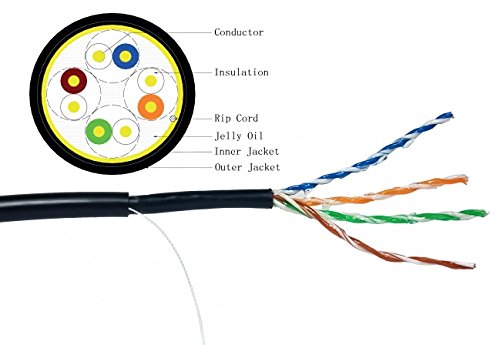

Details: Shireen DC-1020 Cat5e Outdoor Cables Shireen’s DC-1020 high quality outdoor gel filled UTP CAT5e cable. Features dual jacketed, 4 unshielded twisted pairs of 24AWG wire with LDPE + Gel. Excellent for use in any outdoor/inside conduit burial for networking, data transfer (10/100/1000 Mbps) Outer Jacket:LDPE, PVC Ethernet Cable Type:Cat5e Ethernet Cable Application:Burial, Outdoor Ethernet Cable Features:Gel Filled, UTP Dimensions (WxLxH): 13 x 13 x 13 Weight: 40 Lb Specifications DC-1020 Conductor Pairs 4 Total Conductor 8 AWG 24 Dia. of Conductor Φ 0.50±0.01mm Material Solid Bare Copper Elongation ≥15% Insulation Material HDPE Nom. Thickness 0.24mm Dia. Φ 0.95±0.05mm Elongation ≥300% Length of Lay <30 mm Sheath Material Inner: PVC Outer: LDPE Rip Cord 200D×3 Nom. Thickness Inner 0.50±0.05mm O.D. Inner: Φ 5.20±0.2mm Temperature rating -40C to +85C

EAN: 0855382004012
