Shireen DC-1041 Outdoor CAT5e FTP - Gel Filled Shielded - 1000ft Spool

In stock
SKU: B07BZKXWR5
Regular price $246.50

Brand: Shireen

Features:

  • Gel Filled for water resistant
  • Direct Burial
  • Outdoor Cable UV Protected
  • FTP Foil Twisted Pair with ground wire
  • TIA/EIA-568-B.2 & IEC/ISO 11801

Binding: Electronics

Part Number: DC-1041

Details: Description

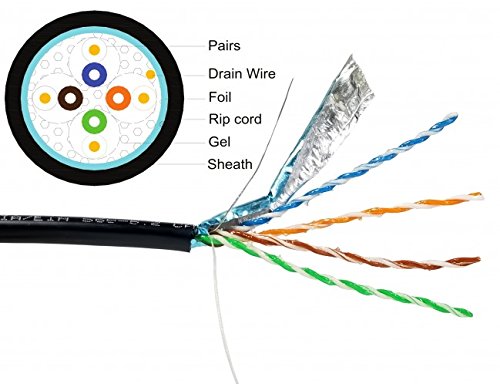

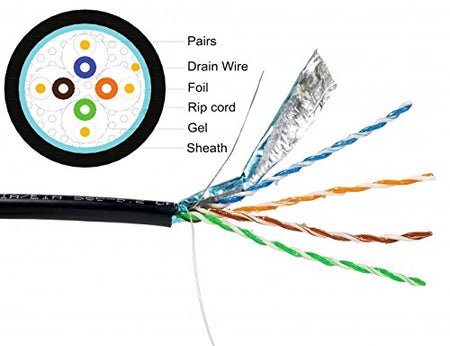

Shireen DC-1041 1000ft, outdoor shielded & gel filled Shireen’s DC-1041 high quality outdoor shielded FTP (Foil Twisted Pair) CAT5e cable now features 4 twisted pairs of 24AWG wire with LDPE + Gel. Excellent or use in any outdoor/direct burial application of networking, data transfer and phone lines. Outer Jacket:LDPE Ethernet Cable Type:Cat5e Ethernet Cable Application:Burial, Outdoor Ethernet Cable Features:FTP, Gel Filled, Gel Filled Shielded, Shielded Dimensions (WxLxH): 13 x 13 x 13 Weight: 34 Lb Specifications DC-1041 Conductor Pairs 4 Total Conductor 8 AWG 24 Dia. of Conductor Φ 0.51±0.02mm Material Solid Bare Copper Elongation ≥15% Insulation Material HDPE - Polyethylene Nom. Thickness 0.26mm Dia. Φ 1.00±0.05mm Elongation ≥300% Length of Lay <38 mm Shielding Vertical Wrap A1-Mylar Tape Coverage % 100% AWG 24 Drain Wire TC - Solid Tinned Copper Outer Sheath Filling Gel Filled Material LDPE Rip Cord 200Dx3 Nom. Thickness 0.72±0.05mm O.D. Φ 6.50±0.3mm

EAN: 0855382004166

Package Dimensions: 14.0 x 14.0 x 14.0 inches
