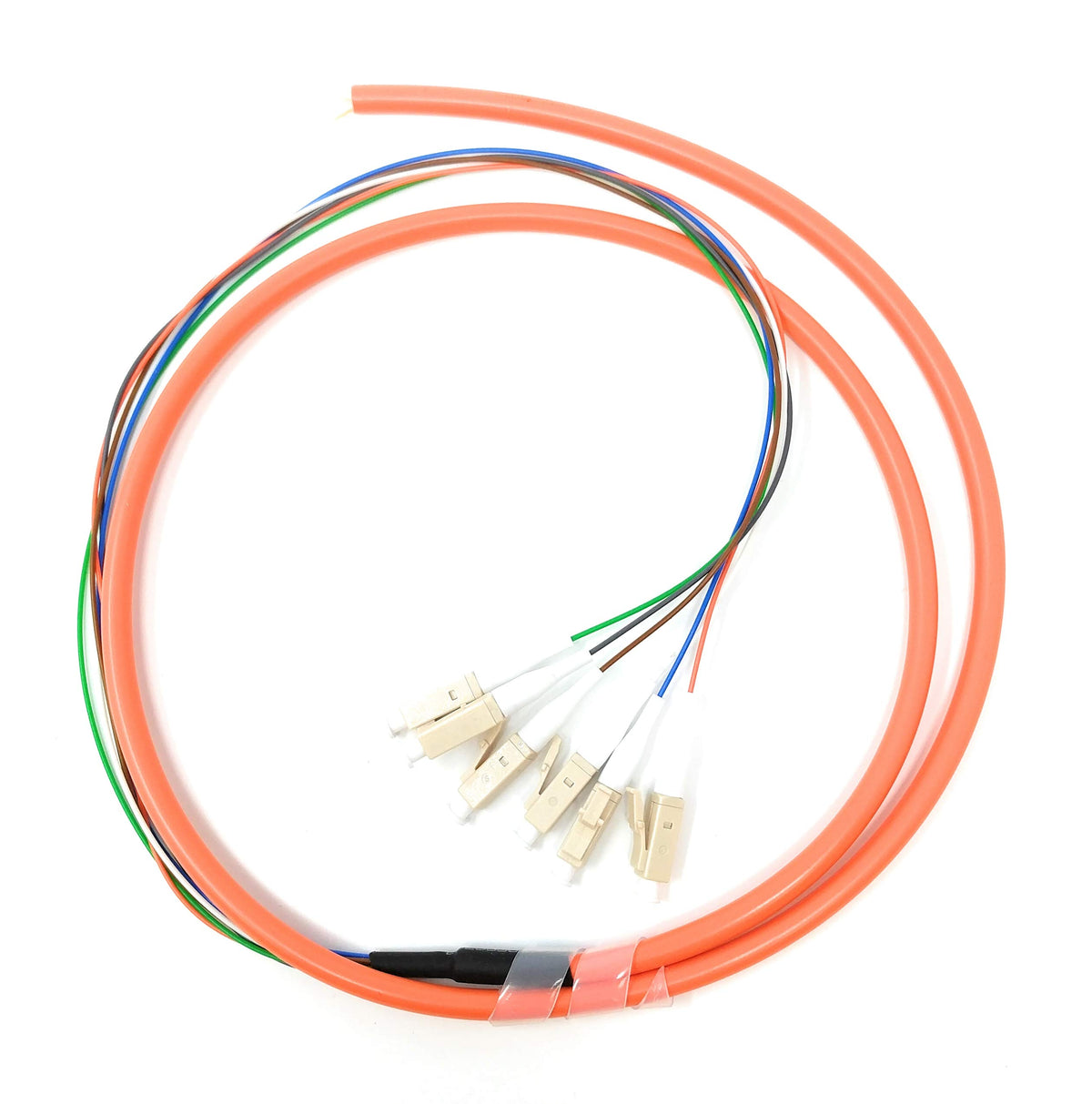

Ultra Spec Cables 6 Strand Multimode OM1 62.5/125 LC-UPC Fiber Pigtail 1 Meter for Splice

Brand: Ultra Spec Cables

Color: LC-UPC Connectors (Beige)

Features:

• Eliminates troublesome Field Terminations
• Saves time and prevents incorrect patching with color-coded pigtails
• The protective outer jacket is removable for tighter bend radius requirements or high density installations
• Low Back Reflection and Insertion Loss
• Perfect for use in Data Centers premise installations LAN WAN Telecommunication and Data Processing Networks

model number: mpn39610

Part Number: mpn39610

Details: Ultra Spec's 6 Strand Multimode OM1 Pigtails are ideal for use in Optical Distribution Frames enclosures or cable management boxes. They can be terminated by mechanical or fusion splicing. One end of the cable is blunt so it can be easily spliced to the trunk backbone or outside plant cable and the other end is terminated with 6 LC-UPC Connectors which connect to the end equipment like an adapter panel or optical transceiver. The six splice-ready 900um buffered cables are color-coded according to industry standards for easy identification and the pre-terminated connectors at the opposite end are machine polished for optimal performance. Each cable is fully inspected and contains a test report. Our pigtails are also available with different connectors polishes strand counts and styles; like armored and waterproof.

Package Dimensions: 8.0 x 5.9 x 0.9 inches
