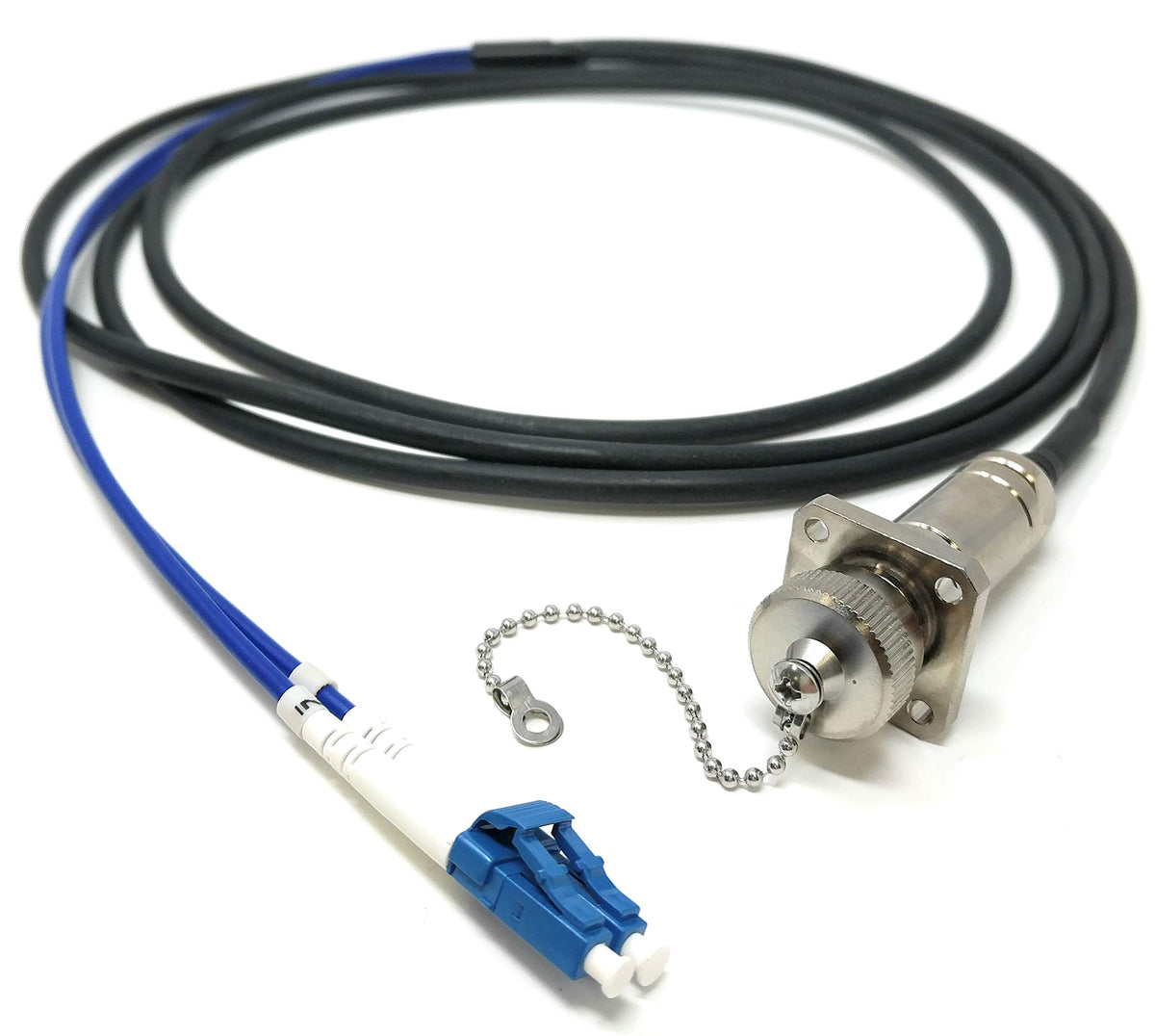

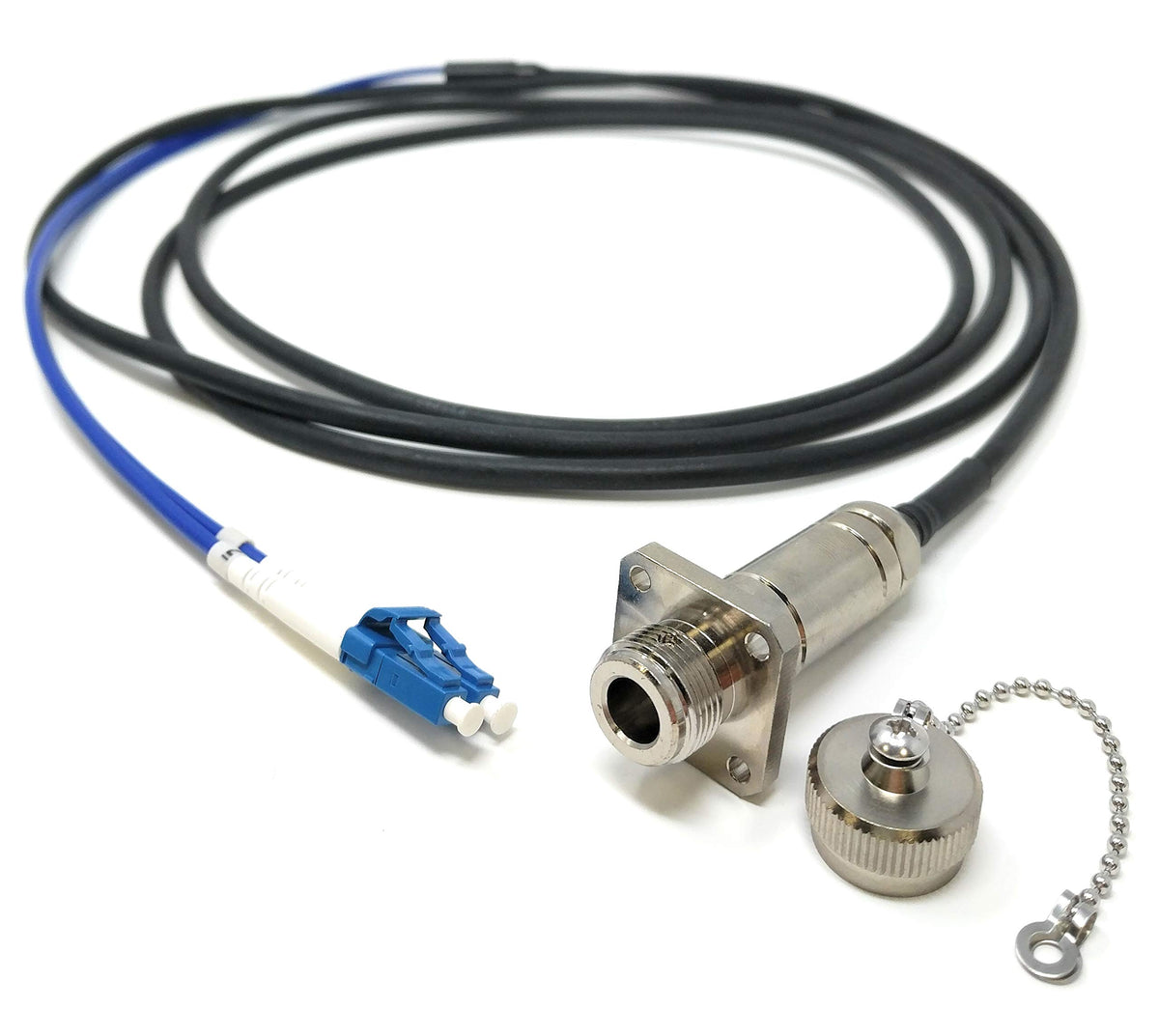

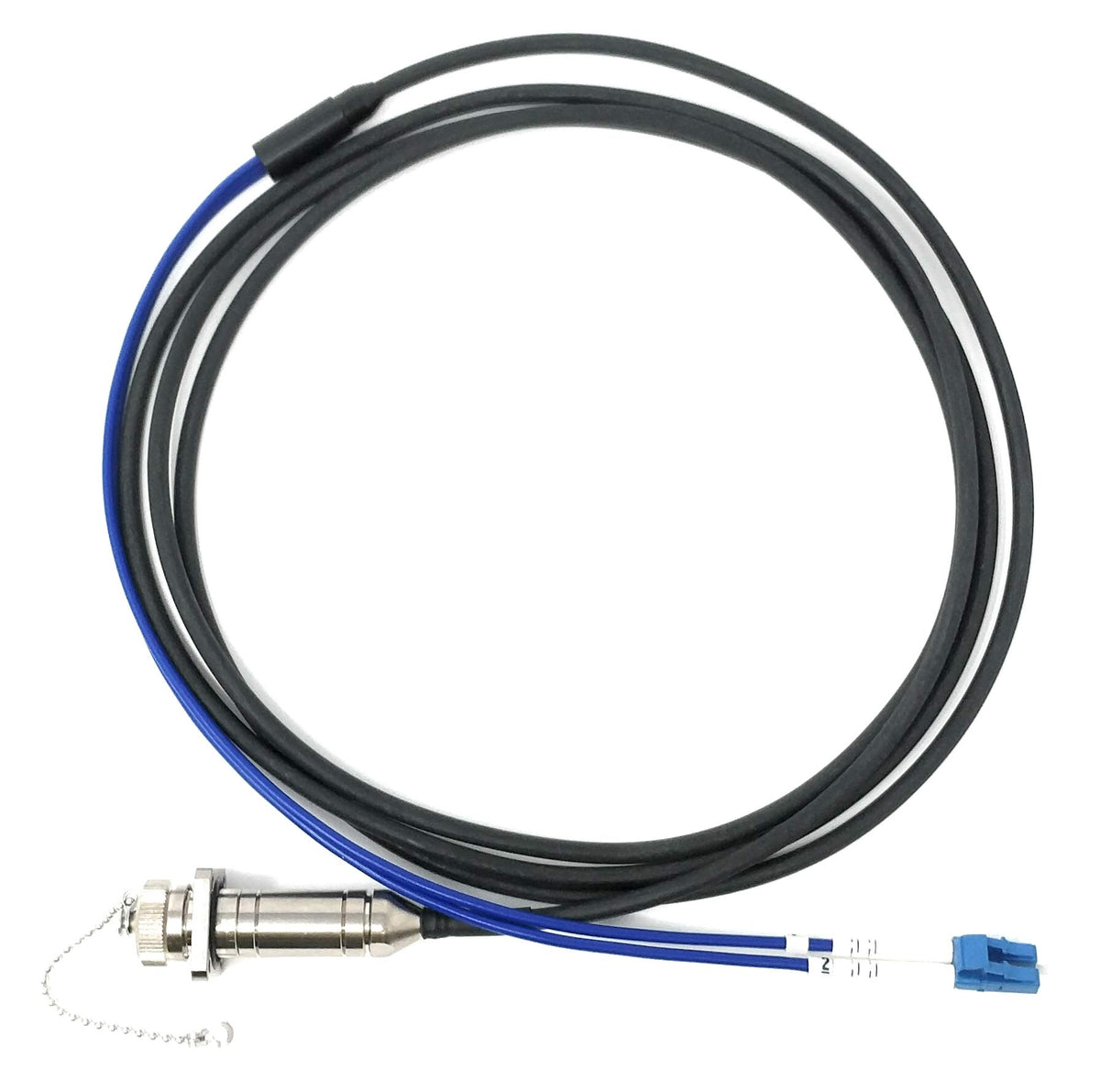

Ultra Spec Cables FTTA Screw-type Stainless Steel Socket to LC-UPC Singlemode Duplex TPU Cable - 1 Meter

Brand: Ultra Spec Cables

Color: Black

Features:

• Resistant to dust, oil, salt, sand, heat, humidity and water
• Socket is notched to ensure proper alignment/mating with corresponding plug

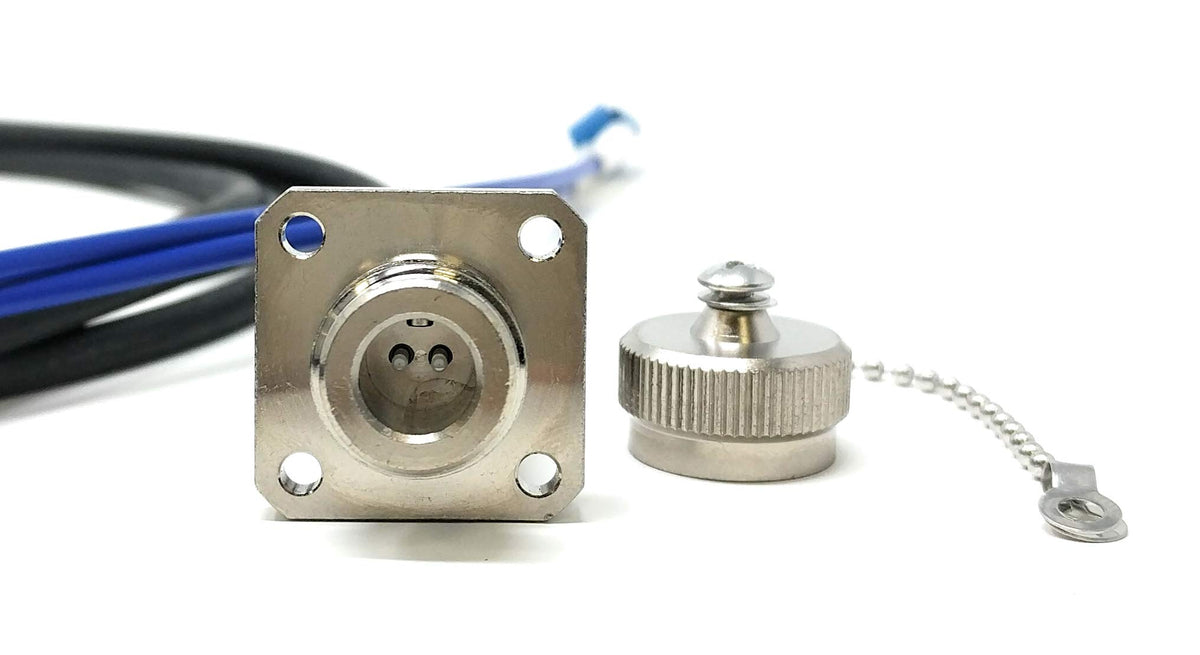

• Dust Cap with retaining chain protects the end while the cable is not in use and can be secured to an adjacent surface when removed to avoid loss
• Ruggedized strain relief impedes stress and tension and maintains the integrity of the cable

Binding: Electronics

Part Number: mpn39261

Details: Ultra Spec Cable's FTTA Screw-type Stainless Steel Socket to LC-UPC Singlemode Duplex TPU Cable is designed for use with FTTX/FTTA Systems, PON, CATV and Optical Signal Distribution and is suitable for both outdoor and harsh environments. The TPU or Thermoplastic Polyurethane Jacket protects the cable from damage caused by environmental conditions and is both extremely flexible and resistant to lubricants, heat, cracks and tears. These properties make it perfect for use in Wireless Base Station Applications and meet FTTA Requirements. The 2 core Singlemode Antenna Feeder Cable consists of an Outdoor Rated, Corrosion Resistant, Stainless Steel Screw-type Socket with a Stainless Steel Square Flange, Screw-locking Mechanism and Dust Cap with retaining chain for when the cable is not in use. The opposite end has a Duplex LC-UPC Connector. Primarily used in Telecommunication Systems, this cable is designed for FTTA (Fiber To The Antenna) applications and would commonly connect the BBU (Baseband Unit) in the equipment room to the RRU (Remote Radio Unit) or RRH (Remote Radio-Head) in a Wireless Base Station Application. Outdoor rated, screw-type connectors, along with fiber have been widely adopted as the standard used in many wireless communication technologies, since they provide more capacity to the cell towers, therefore supporting the demand for faster speeds and are considerably cheaper and easier to install than coaxial cables. The cable is also appropriate for use in transportation, industrial, agricultural, marine, drilling, surveillance, lighting, Aerospace and Defense Applications due to it's durable construction and resistance to interference and high vibration/shock. This specific cable is also available in a 4 Core Option as well as with an Screw-type Plug instead of a Socket and custom lengths are available. Please review our catalog for our full line of cabling that supports Fiber To The Antenna Applications and Mobile Communication Systems.
